ArkHive Installation
See how ArkHive is installed and prepared for use with a standard Langstroth hive. This video walks through site preparation, setting the anchor poles, positioning the ArkHive, and securing the hive for use.
ArkHive® is designed for installation with 8-ft. anchor poles installed approximately 2 ft. into the ground and secured in concrete, leaving approximately 6 ft. above ground. Taller poles may be used at the installer’s discretion; however, performance with taller poles has not been established, and results may vary.
Important: Call 811 before digging. Follow local requirements and the complete ArkHive installation instructions before use.

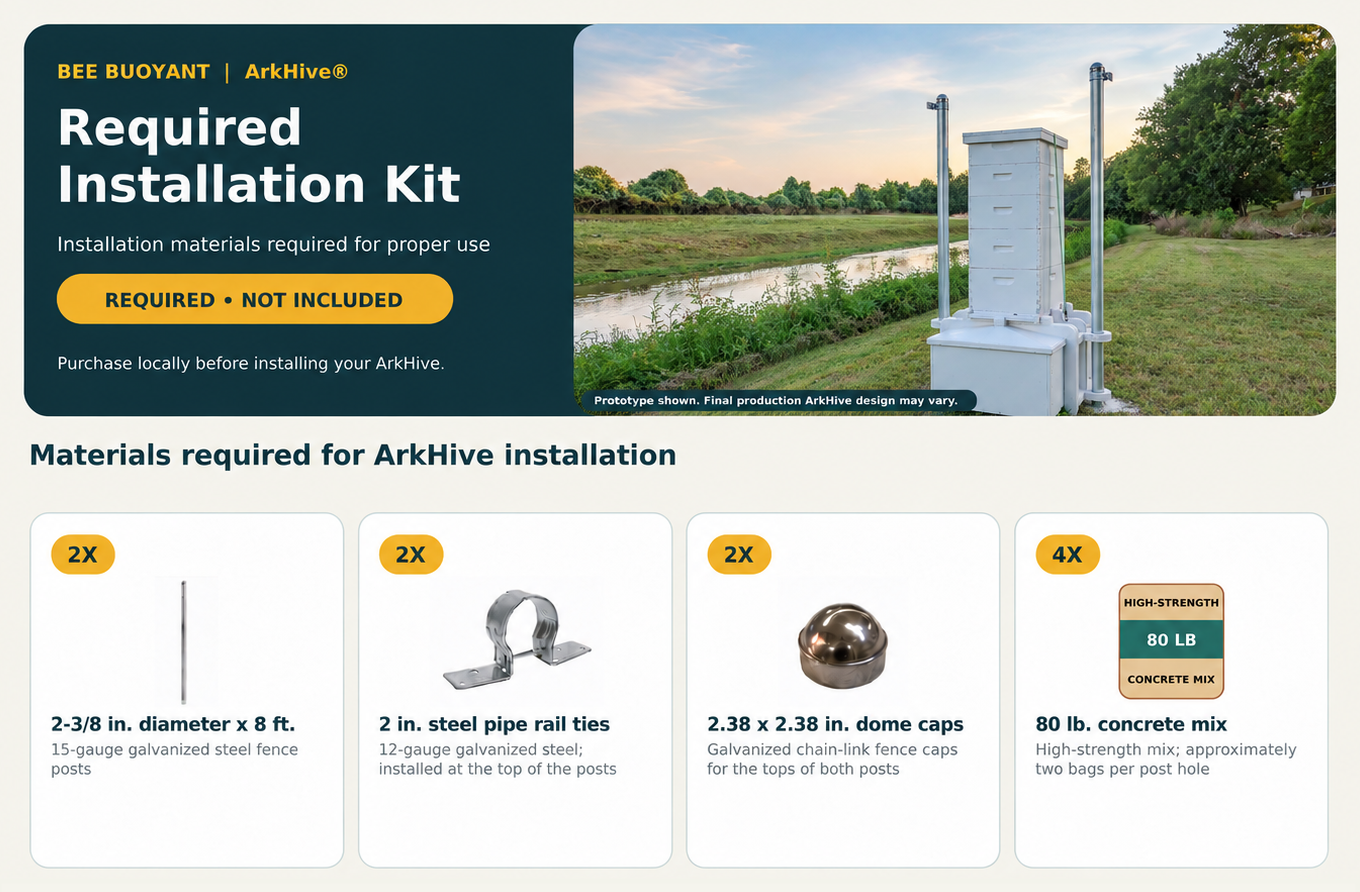

Tools You’ll Need
Tools are purchased separately.
Manual post-hole digger — For digging both anchor holes
Shovel — For digging and handling concrete
Large mixing tub — Approx. 36 in. L × 24 in. W × 8 in. D; for mixing concrete
Socket wrench + 7/16-in. hex socket — For tightening the steel pipe rail ties.
Standard level — For leveling the ArkHive
Tape measure — For measuring the depth of the anchor holes
